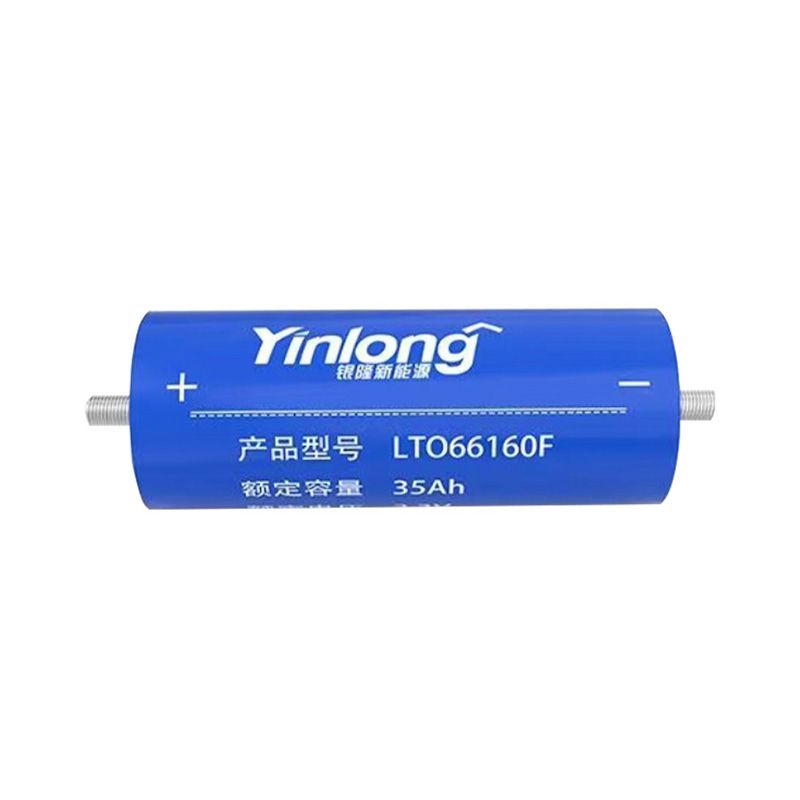

Yinlong 35Ah LTO Cells Grade A Brand New 66160F Lithium Titanate Battery
Yinlong 35Ah LTO Cells Grade A Brand New 66160F Lithium Titanate Battery
Regular price
$45.00 USD
Regular price
$95.00 USD
Sale price
$45.00 USD
Unit price
per
Couldn't load pickup availability
Specification

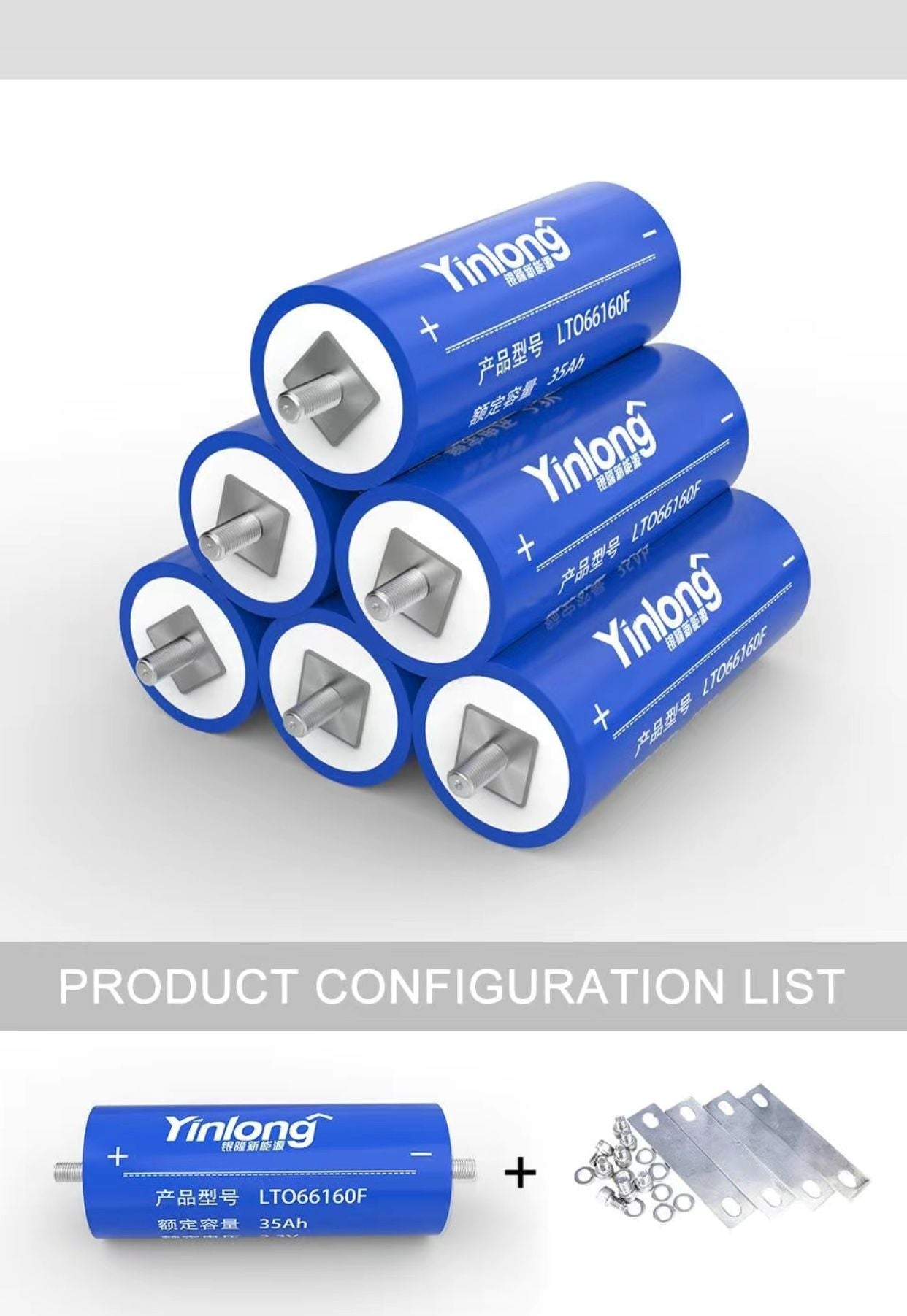

The LTO Yinlong 2.3V 30Ah battery are Grade A brand new cell with clear QR code. For easy assemble, we will weld M12 studs on the cell. Each battery without busbars and nuts, only with original M12 Screws. If you need busbars and nuts, please contact the customer service or you should buy them yourself.
| Battery type | Lithium-Titanate Cell (LTO) |
| Brand | Yinlong |
| Cell Grade | Brand New Grade A Cell |
| Nominal Capacity | 35Ah |
| Nominal Voltage | 2.3V |
| Internal Resistance | <0.35Ω |

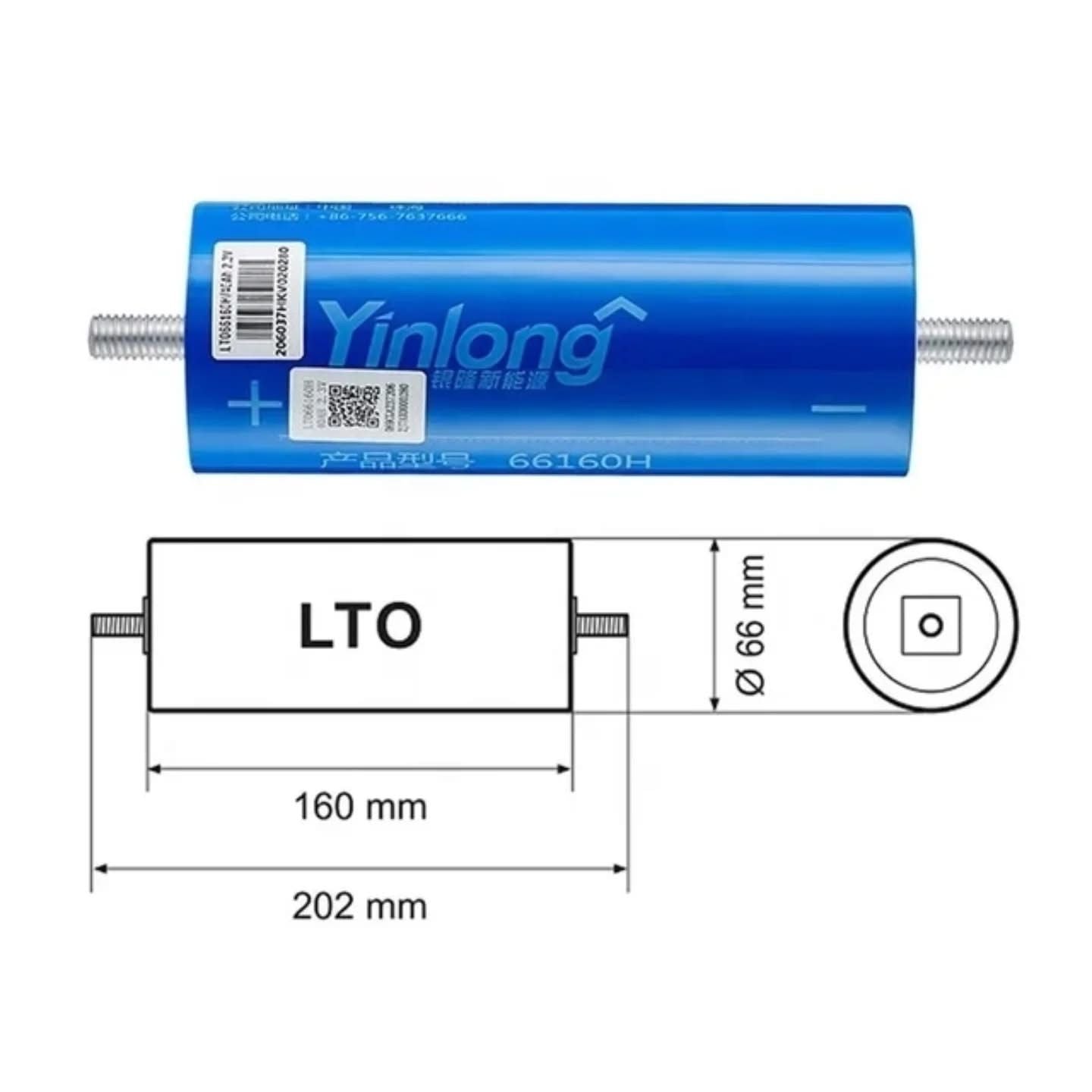

| Dimensions | 66mm（Φ）×160mm（H) |
| Weight | 1.22kg |
| Standard Charge Cut-off Voltage | 1.5V |
| Standard Discharge Cut-off Voltage | 2.9V |
| Cycle Life | >25000 Times |
| Max Charging /Discharging Current | 10C/10C |
| Operating Ambient Temperature | Charging: -50°C ~ 65°C Discharging: -50°C ~ 65°C |
| Data Specification Sheet | LTO Yinlong 35Ah |
| Battery Testing Reports | LTO Yinlong 35Ah |
